What is Default Route Nat In Networking

A NAT gateway is a Network Address Translation (NAT) service. You can use a NAT gateway so that instances in a private subnet can connect to services outside your VPC but external services cannot initiate a connection with those instances.

When you create a NAT gateway, you specify one of the following connectivity types:

Public – (Default) Instances in private subnets can connect to the internet through a public NAT gateway, but cannot receive unsolicited inbound connections from the internet. You create a public NAT gateway in a public subnet and must associate an elastic IP address with the NAT gateway at creation. You route traffic from the NAT gateway to the internet gateway for the VPC. Alternatively, you can use a public NAT gateway to connect to other VPCs or your on-premises network. In this case, you route traffic from the NAT gateway through a transit gateway or a virtual private gateway.
Private – Instances in private subnets can connect to other VPCs or your on-premises network through a private NAT gateway. You can route traffic from the NAT gateway through a transit gateway or a virtual private gateway. You cannot associate an elastic IP address with a private NAT gateway. You can attach an internet gateway to a VPC with a private NAT gateway, but if you route traffic from the private NAT gateway to the internet gateway, the internet gateway drops the traffic.

The NAT gateway replaces the source IP address of the instances with the IP address of the NAT gateway. For a public NAT gateway, this is the elastic IP address of the NAT gateway. For a private NAT gateway, this is the private IP address of the NAT gateway. When sending response traffic to the instances, the NAT device translates the addresses back to the original source IP address.

Pricing

When you provision a NAT gateway, you are charged for each hour that your NAT gateway is available and each Gigabyte of data that it processes. For more information, see

The following strategies can help you reduce the data transfer charges for your NAT gateway:

If your AWS resources send or receive a significant volume of traffic across Availability Zones, ensure that the resources are in the same Availability Zone as the NAT gateway, or create a NAT gateway in the same Availability Zone as the resources.
If most traffic through your NAT gateway is to AWS services that support interface endpoints or gateway endpoints, consider creating an interface endpoint or gateway endpoint for these services. For more information about the potential cost savings, see

NAT gatewayasics

Each NAT gateway is created in a specific Availability Zone and implemented with redundancy in that zone. There is a quota on the number of NAT gateways that you can create in each Availability Zone. For more information, see

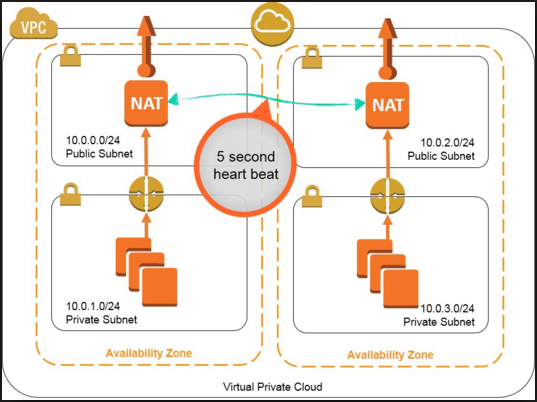

If you have resources in multiple Availability Zones and they share one NAT gateway, and if the NAT gateway’s Availability Zone is down, resources in the other Availability Zones lose internet access. To create an Availability Zone-independent architecture, create a NAT gateway in each Availability Zone and configure your routing to ensure that resources use the NAT gateway in the same Availability Zone.

The following characteristics and rules apply to NAT gateways:

A NAT gateway supports the following protocols: TCP, UDP, and ICMP.
NAT gateways are supported for IPv4 or IPv6 traffic. For IPv6 traffic, NAT gateway performs NAT64. By using this in conjunction with DNS64 (available on Route 53 resolver), your IPv6 workloads in a subnet in Amazon VPC can communicate with IPv4 resources. These IPv4 services may be present in the same VPC (in a separate subnet) or a different VPC, on your on-premises environment or on the internet.
A NAT gateway supports 5 Gbps of bandwidth and automatically scales up to 100 Gbps. If you require more bandwidth, you can split your resources into multiple subnets and create a NAT gateway in each subnet.
A NAT gateway can process one million packets per second and automatically scales up to ten million packets per second. Beyond this limit, a NAT gateway will drop packets. To prevent packet loss, split your resources into multiple subnets and create a separate NAT gateway for each subnet.
A NAT gateway can support up to 55,000 simultaneous connections to each unique destination. This limit also applies if you create approximately 900 connections per second to a single destination (about 55,000 connections per minute). If the destination IP address, the destination port, or the protocol (TCP/UDP/ICMP) changes, you can create an additional 55,000 connections. For more than 55,000 connections, there is an increased chance of connection errors due to port allocation errors. These errors can be monitored by viewing the Error Port Allocation Cloud Watch metric for your NAT gateway. For more information.
You can associate exactly one Elastic IP address with a public NAT gateway. You cannot disassociate an Elastic IP address from a NAT gateway after it's created. To use a different Elastic IP address for your NAT gateway, you must create a new NAT gateway with the required address, update your route tables, and then delete the existing NAT gateway if it's no longer required.
A private NAT gateway receives an available private IP address from the subnet in which it is configured. The assigned private IP address persists until you delete the private NAT gateway. You cannot detach the private IP address and you cannot attach additional private IP addresses.
You cannot associate a security group with a NAT gateway. You can associate security groups with your instances to control inbound and outbound traffic.
You can use a network ACL to control the traffic to and from the subnet for your NAT gateway. NAT gateways use ports 1024–65535. For more information, see
A NAT gateway receives a network interface that's automatically assigned a private IP address from the IP address range of the subnet. You can view the network interface for the NAT gateway using the Amazon EC2 console. For more information, see You cannot modify the attributes of this network interface.
A NAT gateway cannot be accessed through a ClassicLink connection that is associated with your VPC.
You cannot route traffic to a NAT gateway through a VPC peering connection, a Site-to-Site VPN connection, or AWS Direct Connect. A NAT gateway cannot be used by resources on the other side of these connections.

Control the use of NAT gateways

By default, IAM users do not have permission to work with NAT gateways. You can create an IAM user policy that grants users permissions to create, describe, and delete NAT gateways. For more information, see

Work with NAT gateways

You can use the Amazon VPC console to create and manage your NAT gateways

Create a NAT gateway

To create a NAT gateway, enter an optional name, a subnet, and an optional connectivity type. With a public NAT gateway, you must specify an available elastic IP address. A private NAT gateway receives a primary private IP address selected at random from its subnet. You cannot detach the primary private IP address or add secondary private IP addresses.

To create a NAT gateway

Open the Amazon VPC console at
In the navigation pane, choose NAT Gateways.
Choose Create NAT Gateway and do the following:
1. (Optional) Specify a name for the NAT gateway. This creates a tag where the key is Name and the value is the name that you specify.
2. Select the subnet in which to create the NAT gateway.
3. For Connectivity type, select Private to create a private NAT gateway or Public (the default) to create a public NAT gateway.
4. (Public NAT gateway only) For Elastic IP allocation ID, select an Elastic IP address to associate with the NAT gateway.
5. (Optional) For each tag, choose Add new tag and enter the key name and value.
6. Choose Create a NAT Gateway.
The initial status of the NAT gateway is Pending. After the status changes to Available, the NAT gateway is ready for you to use. Be sure to update your route tables as needed. For examples, see
If the status of the NAT gateway changes to Failed, there was an error during creation. For more information, see

Tag a NAT gateway

You can tag your NAT gateway to help you identify it or categorize it according to your organization's needs. For information about working with tags, see in the Amazon EC2 User Guide for Linux Instances.

Cost allocation tags are supported for NAT gateways. Therefore, you can also use tags to organize your AWS bill and reflect your own cost structure. For more information, see in the AWS Billing User Guide. For more information about setting up a cost allocation report with tags, see About AWS Account Billing.

Delete a NAT gateway

If you no longer need a NAT gateway, you can delete it. After you delete a NAT gateway, its entry remains visible in the Amazon VPC console for about an hour, after which it's automatically removed. You cannot remove this entry yourself.

Deleting a NAT gateway disassociates its Elastic IP address, but does not release the address from your account. If you delete a NAT gateway, the NAT gateway routes remain in a blackhole status until you delete or update the routes.

To delete a NAT gateway

Open the Amazon VPC console at
In the navigation pane, choose NAT Gateways.
Select the radio button for the NAT gateway, and then choose Actions, Delete NAT gateway.
When prompted for confirmation, enter and then choose Delete.
If you no longer need the Elastic IP address that was associated with a public NAT gateway, we recommend that you release it. For more information, see
